Performance
|
|
Switching capacity
|
SF100D-05: 1 Gbps
SF100D-08: 1.6 Gbps
SF100D-08P: 1.6 Gbps
SF100D-16: 3.2 Gbps
SF100-16: 3.2 Gbps
SF100D-16P: 3.2 Gbps
SF100-24: 4.8 Gbps
SF102-24: 8.8 Gbps
SG100D-05: 10 Gbps
SG100D-08: 16 Gbps
SG100D-08P: 16 Gbps
SG100-16: 32 Gbps
SG100-24: 48 Gbps
SG102-24: 48 Gbps
|
|
Forwarding capacity
|
Forwarding rate in million packets per second (mpps) (based on 64-byte packets):
SF100D-05: 0.74 mpps
SF100D-08: 1.4. mpps
S100D-08P: 1.2 mpps
SF100D-16: 1.4 mpps
SF100-16: 1.4 mpps
SF100D-16P: 1.4 mpps
SF100-24: 3.6 mpps
SF102-24: 6.5 mpps
SG100D-05: 7.4 mpps
SG100D-08: 11.9 mpps
SG100D-08P: 11.9 mpps
SG100-16: 23.8 mpps
SG100-24: 35.7 mpps
SG102-24: 35.7 mpps
|
|
Layer 2 Switching
|
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
|
Jumbo Frame
|
9216 bytes
|
|
Quality of Service (QoS)
|
|
Priority levels
|
4 hardware queues
|
|
Scheduling
|
Priority queuing and weighted round-robin (WRR)
|
|
Class of service
|
802.1p priority based
|
|
Product Specifications
|
|
Ports
|
SF100D-05: 5 RJ-45 connectors for 10BASE-T/100BASE-TX
SF100D-08: 8 RJ-45 connectors for 10BASE-T/100BASE-TX
SF100D-08P: 8 RJ-45 connectors for 10BASE-T/100BASE-TX;
SF100D-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX
SF100D-16P: 16 RJ-45 connectors for 10BASE-T/100BASE-TX
SF100-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX
SF100-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX
SF102-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX; with 2 combo mini-GBIC slots
SG100D-08: 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

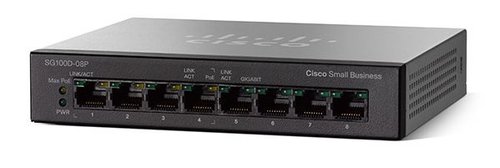

SG100D-08P: 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
SG100-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports
SG100-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
SG102-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots
All units: Automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto negotiated port for connecting 10-, 100-, 1000- Mbps devices
|
|
PoE
|
SF100D-08P: 4 PoE ports with 33.12W dedicated power budget
SF100D-16P: 8 PoE ports with 64W dedicated power budget
SG100D-08P: 4 PoE ports with 33.6W dedicated power budget
|
|
Cabling type
|
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; 1000BASE-T recommended
|
|
LEDs
|
System/PWR, Link/Activity, 100M, PoE, Max PoE, Gigabit, mini-GBIC*
* if present
|
|
Standards
|
802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet
802.3ab 1000BASE-T Gigabit Ethernet
802.3z Gigabit Ethernet
802.3x flow control
802.1p priority
IEEE 802.3az, Energy Efficient Ethernet
802.3af, Power Over Ethernet
|
|
Environmental
|
|
Dimensions
W x H x D
|
SF100D-05: 4.33 × 1.18 × 2.95 inches (110 × 30 × 75 mm)
SF100D-08: 6.29 × 1.18 × 3.54 inches (160 × 30 × 90 mm)
SF100D-08P: 6.29 × 1.18 × 5.05 inches (160 × 30 × 128.5 mm)
SF100D-16: 6.29 × 1.71 × 3.54 inches (160 × 43.5 × 90 mm)
SF100-16: 11 × 1.75 × 6.7 inches (279.4 × 44.5 × 170 mm)
SF100D-16P: 6.29 × 1.69 × 3.54 inches (160 × 43 × 90 mm)
SF100-24: 11 × 1.75 × 6.7 inches (279.4 × 44.5 × 170 mm)
SF102-24: 17.35 × 1.74 × 7.99 inches (440.6 × 44.32 × 202.82 mm)
SG100D-05: 4.33 × 1.18 × 3.93 inches (110 × 30 × 100 mm)
SG100D-08: 6.29 × 1.18 × 4.07 inches (160 × 30 × 103.5 mm)
SG100D-08P: 6.29 × 1.18 × 5.05 inches (160 × 30 × 128.5 mm)
SG100-16: 11 × 1.75 × 6.7 inches (279.4 × 44.5 × 170 mm)
SG100-24: 17.35 × 1.74 × 7.99 inches (440.6 × 44.32 × 202.82 mm)
SG102-24: 11 × 1.75 × 6.7 inches (279.4 × 44.5 × 170 mm)
|
|
Unit weight
|
SF100D-05: 0.47 lb. (0.22 kg)
SF100D-08: 0.83 lb. (0.38 kg)
SF100D-08P: 1.2 lb. (0.545 kg)
SF100D-16: 1.03 lb. (0.46 kg)
SF100-16: 2.79 lb. (1.25 kg)
SF100D-16P: 0.99 lb. (0.45 kg)
SF100-24: 2.91 lb. (1.32 kg)
SF102-24: 4.93 lb. (2.00 kg)
SG100D-05: 0.70 lb. (0.32 kg)
SG100D-08: 0.94 lb. (0.43 kg)
SG100D-08P: 1.2 lb. (0.55 kg)
SG100-16: 3.15 lb. (1.43 kg)
SG100-24: 3.59 lb. (1.63 kg)
SG102-24: 5.05 lb. (2.3 kg)
|
|
Power
|
SF100D-05, SF100D-08: DC 12V, 500mA
SF100D-16, SG100D-08, SG100D-05: DC 12V, 1.0A
SF100D-08P, SG100D-8P: DC 48V. 1.25A
SF100-16, SF100D-16P, SF100-24, SG100-16, SG100-24, SG102-24: 100-240VAC, 50-60 Hz, internal, universal
|
|
Certifications
|
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
|
|
Operating temperature
|
32° to 104°F (0° to 40°C)
|
|
Storage temperature
|
-4° to 158°F (-20° to 70°C)
|
|
Operating humidity
|
10% to 90%, relative, non-condensing
|
|
Storage humidity
|
10% to 90%, relative, non-condensing
|
|
Package Contents
|
|
● Cisco 100 Series Switch
● Power cord/power adapter
● Mounting hardware
● Quick-start guide
|
|
Minimum Requirements
|
|
● Category 5 Ethernet network cable
● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
|
